TRUCK MOUNTED AERIAL WORK PLATFORM P – 750′
- Max working height - 245′ / 75m
- Max Cage load - 1322 lb / 600 kg
- Max Horizontal Outreach - 115′ / 39m
Palfinger - 750
P-750 platforms are mounted on an all-wheel drive, rough terrain chassis, and ready for work in a tough work environment. The P-750 is our flagship model and it says it all—this machine is equipped to face any challenge, from various city jobs to oilfield projects in extreme conditions

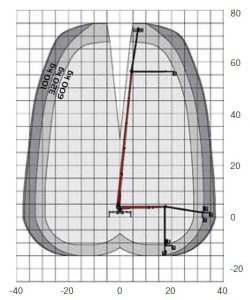

Max. working height – 250’ / 75m
Max. cage floor height – 233’ / 73m

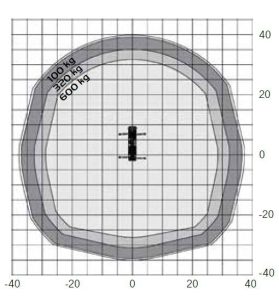

Max. horizontal outreach – 115’ / 39m
Max. working range bellow floor level – 20’ / 6m
Max length of jib boom – 31’6 / 9.65m
Turntable rotation – continuous
Cage rotation – 2 X 80 degrees
Min. stabilizer spread – 8’6” (within truck width)
Max. stabilizer spread – 27’1” / 8.25m
Unit dimensions in transport position – 14m X 3.93m X 2.51m
Gross vehicle weight – 70,107 lb
Max. extendable cage load – 1,320 lb / 600 kg
Extendable cage dimensions – 12’7” X3’4”X3’6” / 3.81 x 1.04 x 1.1 m
Max. heavy duty cage load – 1,322 lb / 600 kg
Heavy duty cage dimensions – 8’1” X3’4”X3’6” / 2.47m X 1.05m X 1.1m
Cage rotation – 2 X 80 degrees
230V/110V socket in the basket – 24V DC socket in the basket
Hydraulic power outlet – 200 bar (2,900 psi)
Movable cage controls panel with graphic display – 10 l/min (2.6 US gpm)
Secondary controls station at a turntable – High pressure water/air line inside the cage
