TRUCK MOUNTED AERIAL WORK PLATFORM P – 480′
- Max working height - 160′ / 48m
- Max Cage load - 1322 lb / 600 kg
- Max Horizontal Outreach - 95′ / 29m
Palfinger - 480
P-480 platforms are true workhorses. Their light weight and compact size in transport make them perfect for any city work. Heavy duty Freightliner chassis, 470 hp engine, and a 12-foot wide cage with all standard A-line features and options offer great versatility in terms of the uses of this machine.

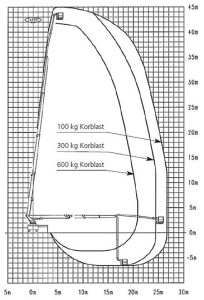

Max. working height – 148’ / 45m
Max. cage floor height – 141’ / 43m
Max. horizontal outreach – 95’ / 29m
Max. working range bellow floor level – 20’ / 6m
Max length of jib boom – 31’6 / 9.65m
Turntable rotation – continuous
Cage rotation – 2 X 80 degrees
Min. stabilizer spread – 8’6” (within truck width)
Max. stabilizer spread – 20’3” / 6.2m
Unit dimensions in transport position – 33′ X 8’6” X 13’4” / 8m X 2.59m X 4.1m
Gross vehicle weight – 48,600 lb
Max. extendable cage load – 1,320 lb / 600 kg
Extendable cage dimensions – 12’7” X3’4”X3’6” / 3.88m X 1.05m X 1.1m
Max. heavy duty cage load – 1,540 lb / 700 kg
Heavy duty cage dimensions – 8’1” X3’4”X3’6” / 2.47m X 1.05m X 1.1m
Cage rotation – 2 X 80 degrees
230V/110V socket in the basket – 24V DC socket in the basket
Hydraulic power outlet – 200 bar (2,900 psi)
Movable cage controls panel with graphic display – 10 l/min (2.6 US gpm)
Secondary controls station at a turntable – High pressure water/air line inside the cage
